Plant 3D size editing is a breeze

In AutoCAD Plant 3D 2012, you can change the size of a valve just by going to its properties and making a simple change.

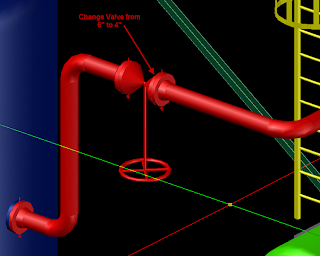

Select the valve, RMC on the valve and select Properties to see the size value.

In Properties, change the size by selecting the drop-down list and choose the new size.

Once the size is changed, close Properties and see the result. There is no need to add reducers to your pipeline. Reducers are automatically added to both sides of the 4" weldneck flanges.

Happy Routing!
